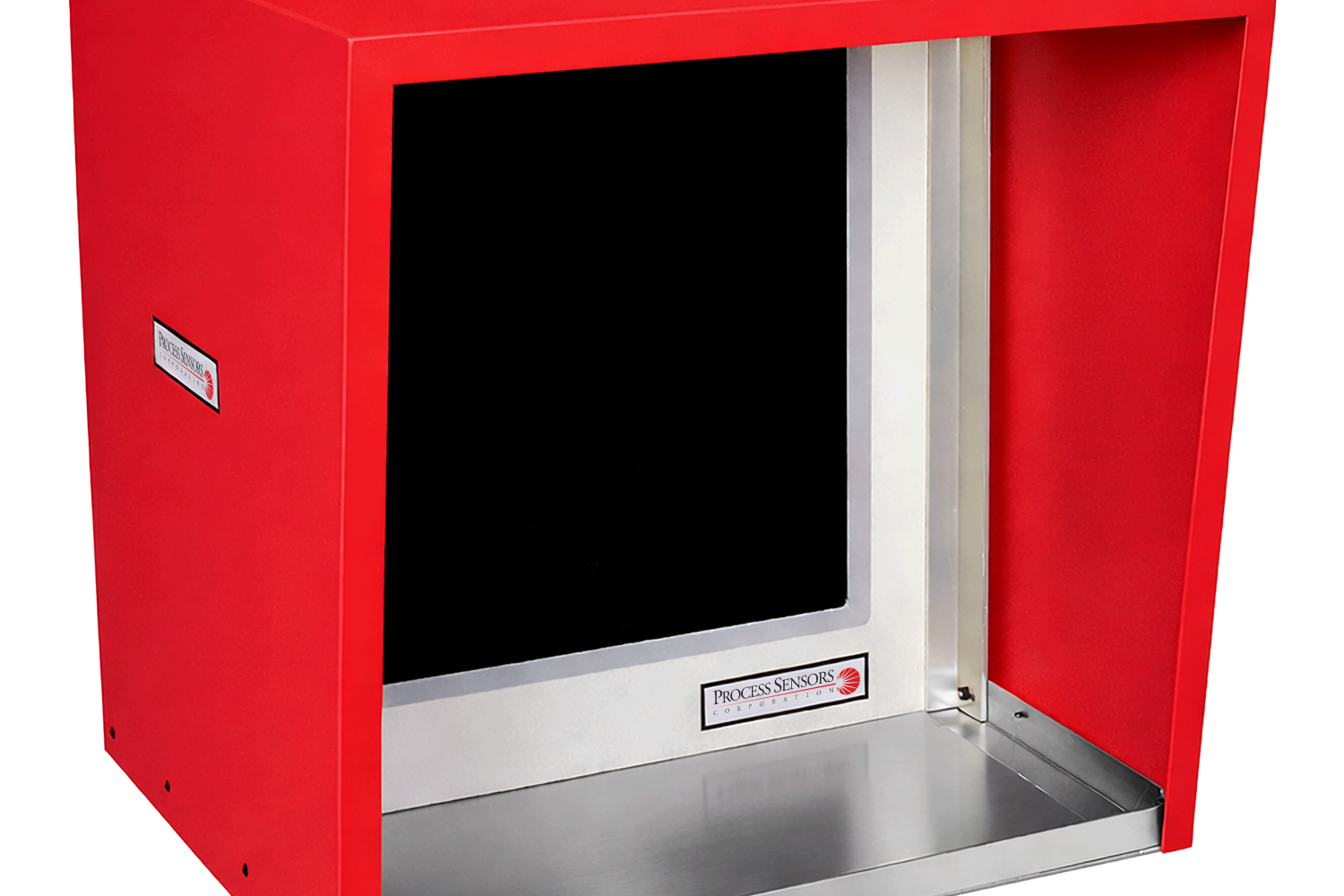

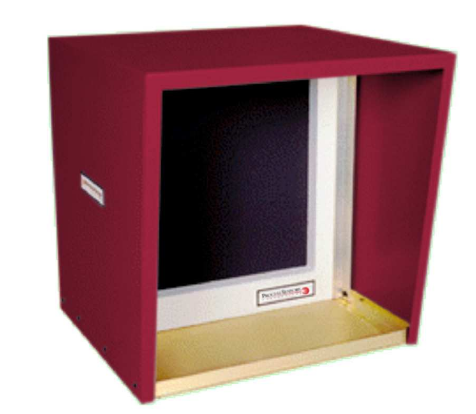

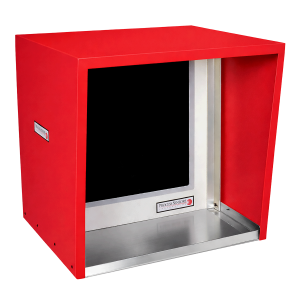

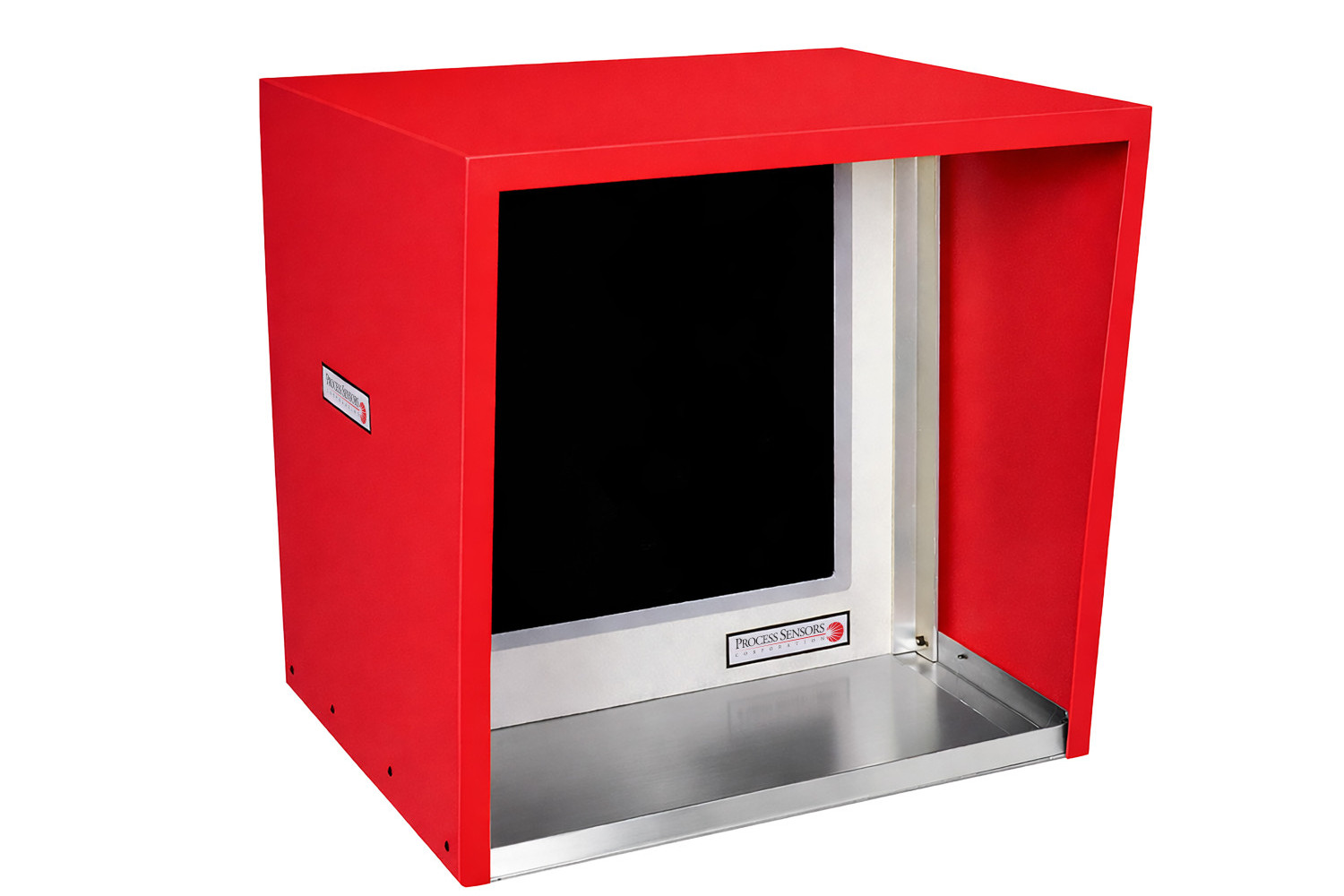

BBS EX Extended Area Blackbody Calibration Source
12" x 12" BBS Source to 500C
The PSC EX series of black body source offer a range of temperatures in a 12" x 12" black body calibration source. Ambient temperature ranges starting from to 230ºC and ending at 500°C.
Overview
PSC-BBS series of blackbody calibration sources provide a target of known emissivity, temperature and aperture size. These blackbodies can also provide calibration traceability to certified laboratories and national standards.
The PSC EX series of blackbody calbration sources offers a 12" x 12" target for calibrating wider field of view IR sensors. The PSC EX series is offered in 3 models with temperature ranges up to 500C.
Specs
PSC-BBS230-EX
Temperature Range
Ambient to 230ºC
Aperature Size
12” x 12” (304mm x 304mm)
Emissivity Value
0.96 +/- 0.02
Power Requirement
1500 Watts Max
PSC-BBS350-EX
Temperature Range
Ambient to 350°C
Aperature Size
12” x 12” (304mm x 304mm)
Emissivity Value
0.96 +/- 0.02
Power Requirement
2000 Watts Max
PSC-BBS500-EX
Temperature Range
Ambient to 500°C
Aperature Size
12” x 12” (304mm x 304mm)
Emissivity
0.96 +/- 0.02
Power Requirement
4500 Watts Max
