Process Sensors Corporation

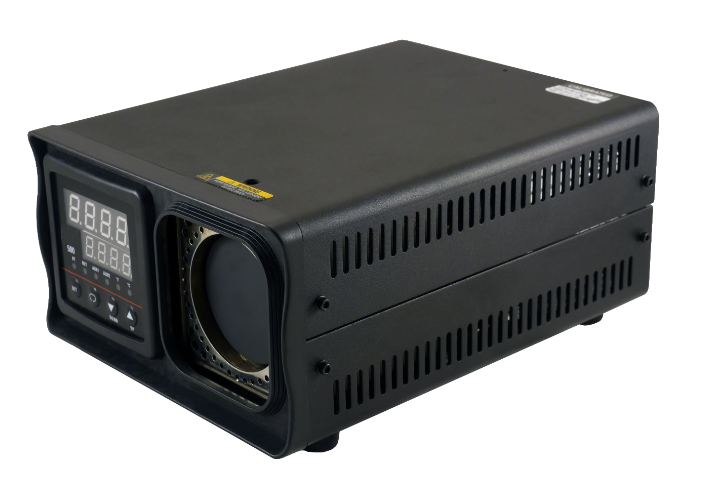

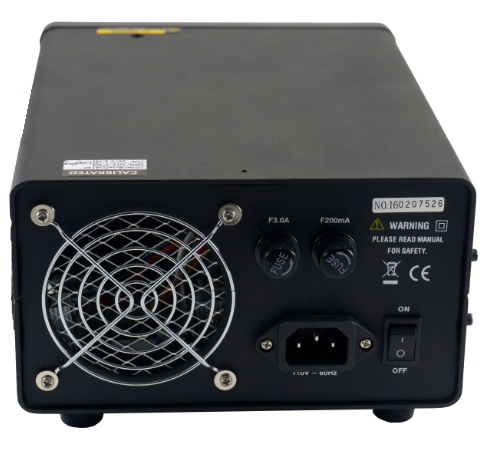

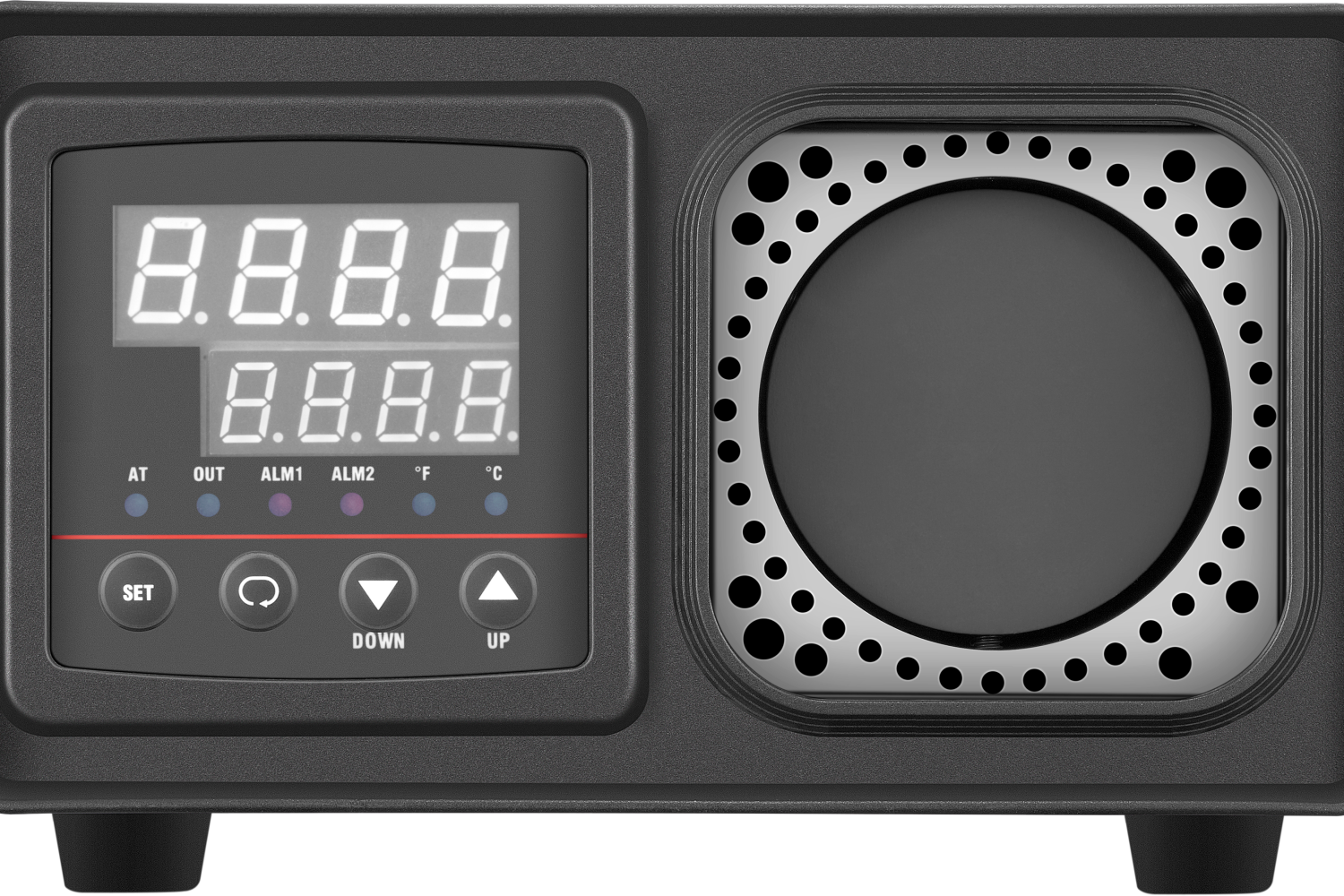

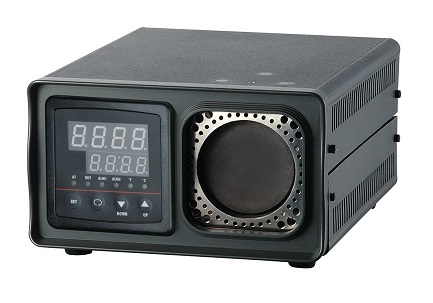

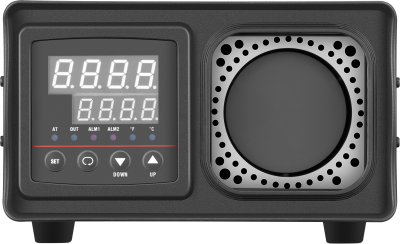

BBS500-57

A Portable, Compact, Highly Stable, and Uniform Blackbody

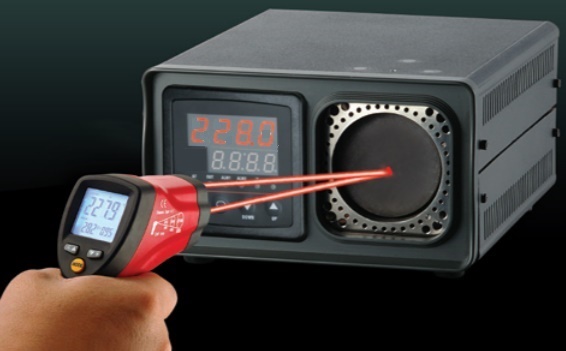

The BBS500-57 is a lightweight Blackbody ideal for the calibration verification of pyrometers and thermal imaging cameras. Used for temperature ranges between 50 to 500°C. Cost-efficient and easy to transport, this Blackbody can quickly be used in many plants, laboratories, and factories.

Inquire

Specs

BBS500-57

Temperature Range
50° to 500°C // 122° to 932°F
Accuracy
±0.5ºC @ 100ºC/ ±1.0ºF @ 212ºF // ±1.8ºC @ 500ºC/ ±3.6ºF @ 932ºF
Stability
±0.1ºC @ 100ºC/ ±0.2ºF @ 212ºF // ±0.3ºC @ 500ºC/ ±0.6ºF @ 932ºF
Emitter Aperature Size
57mm (2.25”)
Emissivity Value
0.95
Resolution
0.1ºC/ºF
Power Requirement
230 VAC (±10%), 1.5 A or 110 VAC, 3A (select one)
Weight
6 lbs
Size (H x W x D)
180 x 114 x 233 (mm)
Heating Time
40 minutes max
Cooling Time
45 minutes to max to 100°C
