BBS500-6R
Lightweight Portable BBS Calibration Source for temperature testing

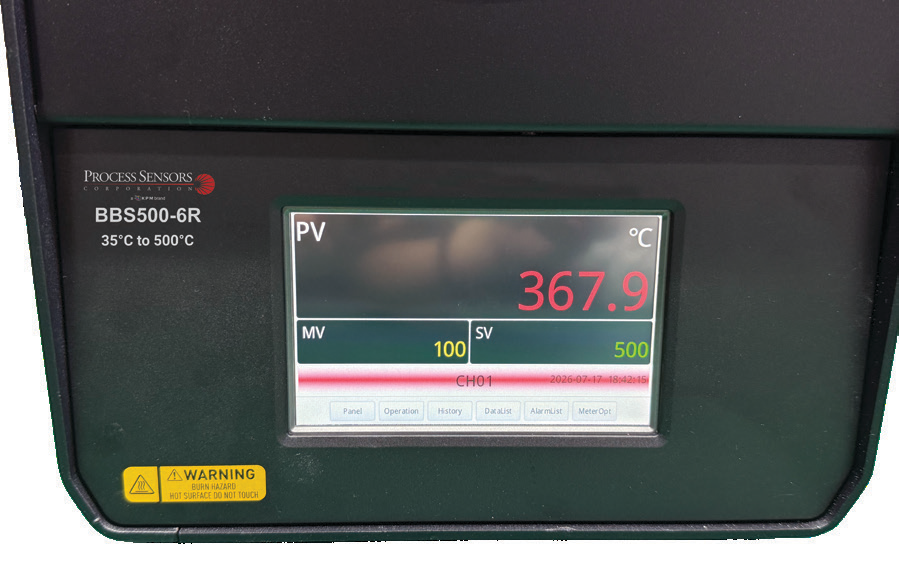

The BBS500-6R Blackbody Calibration Source with large 6 inch IR emitter aperture is ideal for thermal imaging cameras, detector arrays, and large spot size pyrometers, fixed and portable. Capable of confirming infrared temperature accuracy in a 35°C to 500°C range. The front-facing touch screen controller simplifies set point temperature adjustment, accelerating temperature accuracy testing. Thanks to its design, it can be paired with a secondary temperature verification thermocouple for more meticulous testing and higher quality control.
Overview
Various Applications include:
• IR radiance emission calibration of spectrophotometers, spectroradiometers, FLIRs, thermal imaging cameras, pyrometers,
radiometers and heat flux meters.
• Thermal imaging camera, portable handheld, and fixed IR pyrometer calibration
• Research and development application requirements.
• Calibration laboratories, Universities and Manufacturing facilities
Specs
BBS500-6R
Temperature Range
35°C to 500°C
Aperature Size
152 mm // 6 inches
Emissivity Value
0.95
Power Requirement
110 VAC (±10 %) (optional: 230 VAC model). Max. 1000 W
Heat-up Time
20 minutes-35°C to 450°C // 95°F to 842°F
10 minutes-450°C to 500°C // 842°F to 932°F
