BBS-FP Fixed Point Temperature Calibration Sources

The Blackbody emitter heats up and stabilizes in 5 to 15 minutes to the desired temperature, depending on the model. An LED indicator on the Blackbody is used to show when it has reached its final target temperature:  green when the BBS...FP is warming up, orange when the BBSxx-FP is ready for operation and red when the BBSxx-FP is overheating (visual warning alarm).

The BBSxx-FP can be used with any infrared temperature sensor that is able to measure between 35ºC and 150ºC and can focus on a target area less than 2" (50.8 mm).

The PSC-BBS-FP series is avalible in the following fixed temperature points:

• BBS35-FP             Calibration source BBS35              35 °C
• BBS45-FP             Calibration source BBS45              45 °C
• BBS50-FP             Calibration source BBS50              50 °C
• BBS55-FP             Calibration source BBS55              55 °C
• BBS60-FP             Calibration source BBS60              60°C
• BBS65-FP             Calibration source BBS65              65°C
• BBS70-FP             Calibration source BBS70              70°C
• BBS75-FP             Calibration source BBS75              75°C
• BBS80-FP             Calibration source BBS80              80°C
• BBS85-FP             Calibration source BBS85              85°C
• BBS90-FP             Calibration source BBS90              90°C
• BBS95-FP             Calibration source BBS95              95°C
• BBS100-FP           Calibration source BBS100            100°C
• BBS110-FP           Calibration source BBS110            110°C
• BBS120-FP           Calibration source BBS120            120°C
• BBS130-FP           Calibration source BBS130            130°C
• BBS140-FP           Calibration source BBS140            140°C
• BBS150-FP           Calibration source BBS150            150°C

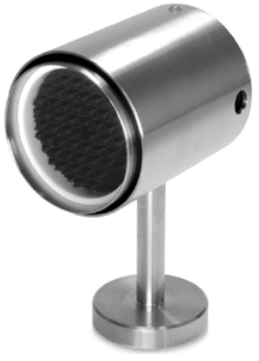

PSC-BBS-FP Series
