PSC-A10C

Through Lens Sighting For CO2 Gas and Flame Temperature Measurement

The digital pyrometer PSC-A10C is designed for temperature measurement of CO2 hot combustion gases and flame in a narrow spectral range band around 4.6 μm. The pyrometer uses integrated through-the-lens sighting, which enables easy alignment to the center of the sight tube. It covers a wide temperature range of 200 to 2000°C.

PSC-A10C Brochure

PSC-A10C front photo

PSC-A10C casing

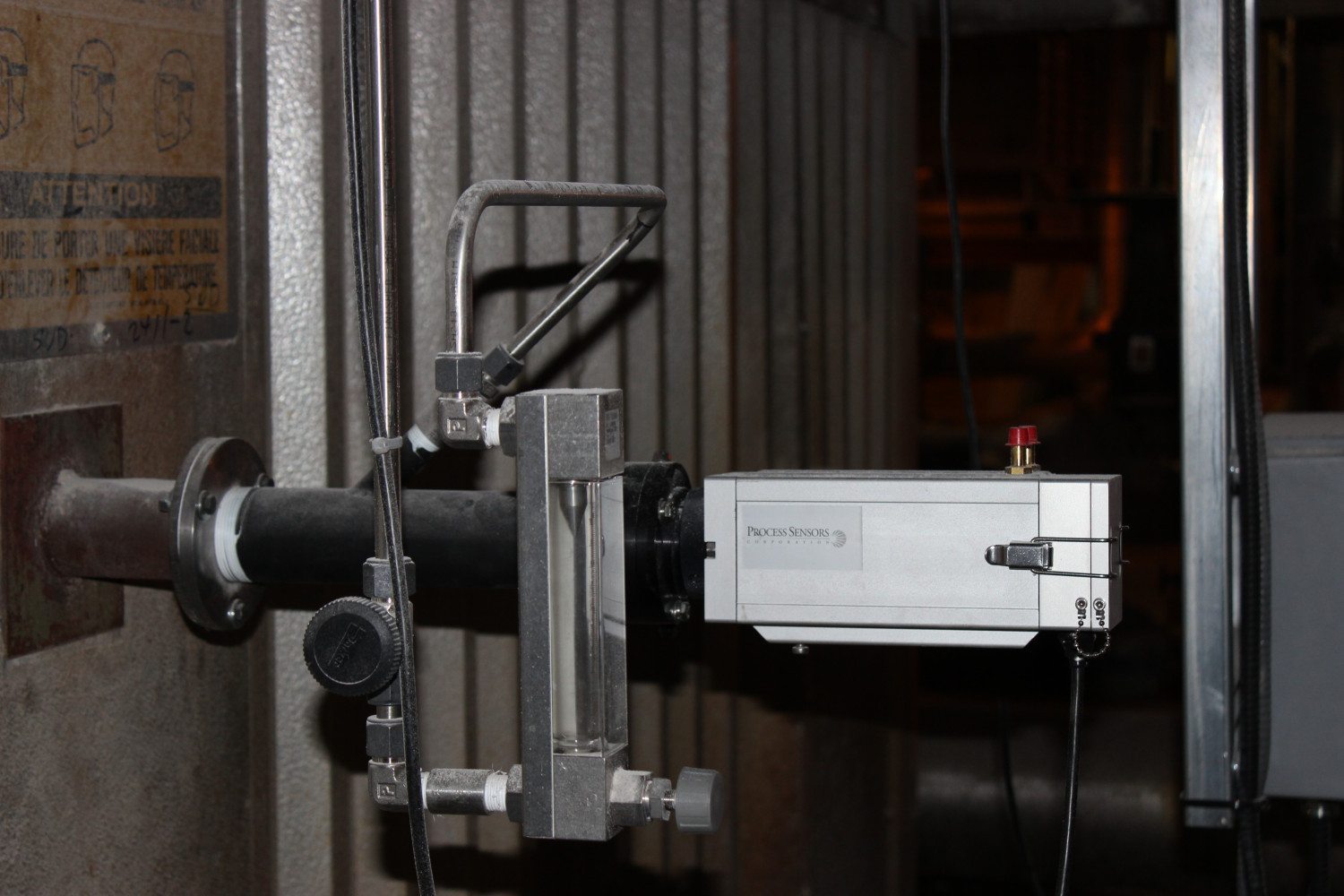

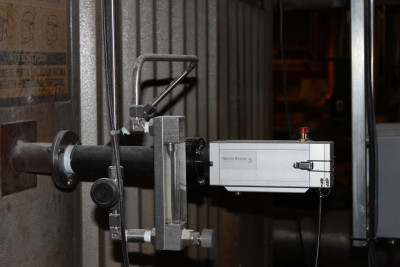

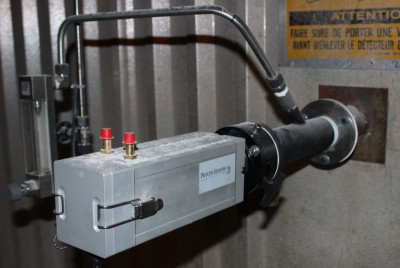

Measuring Boiler Temperature

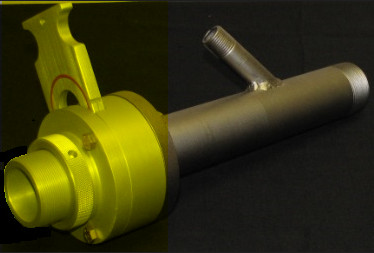

Removable Sapphire Window Assembly example

PSC-A10C front photo

PSC-A10C casing

Measuring Boiler Temperature

Removable Sapphire Window Assembly example

Overview
Specs

Overview

Typical application areas

Power generation boilers
Furnaces
Reactors
Combustion chambers
Kilns
Garbage incinerators
Recovery boilers
Biomass boilers

Specs

PSC-A10C

Temperature Range

200 to 1800°C 500 to 2000°C

Spectral Range

about 4.6 μm

Response Time

1 ms, adjustable up to 100 sec.

Accuracy

3 % of measured value (200 to 499°C) // 1% of measured value (500 - 1800°C) ± 0.5% of measured value +1°C (500 to 2000°C)

Outputs

0/4 to 20 mA, switchable via software and directly at the device, temperature linear, max. burden 700 Ω

Power Supply

24 VDC ± 25%

Optics

Optics 3 Variable Focus Distance- 400 to 4500 mm (16 to 180 inches)

Accessories
