PSC-A10F Series

View through hot combustion gases and clean flames

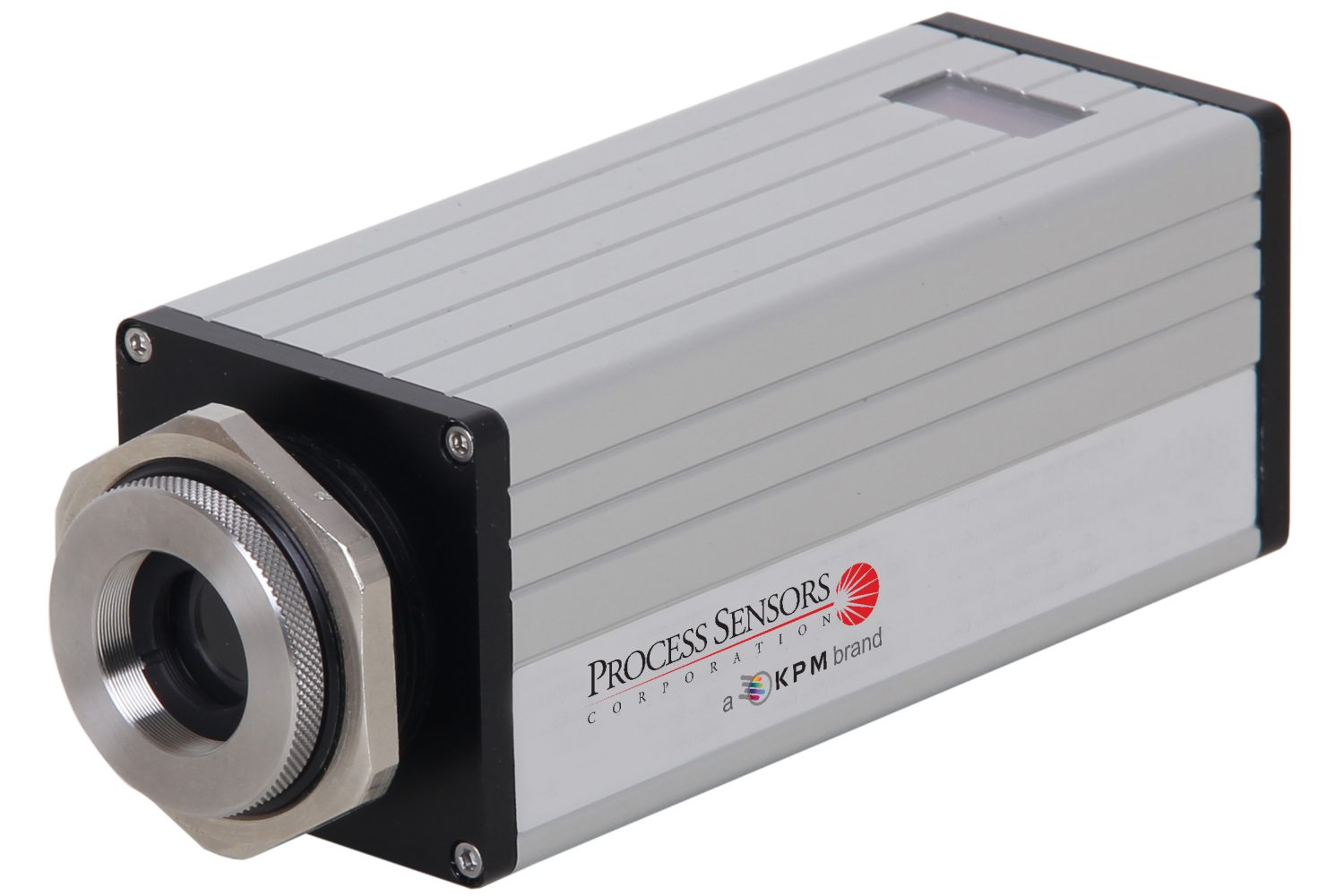

The PSC-A10F series is a digital pyrometer covering temperature ranges from 200°C to 2500°C, designed to look through hot combustion gases and clean flames. The IR sensor provides three sighting methods-laser, through lens, or video.. Four different optics provide focusablity at different distances providing extremely small spot sizes. A selection of protective cooling, air purging, and mounting accessories are available.

Inquire

Overview

The PSC-A10F series are digital pyrometers with either through lens, laser, or video sighting. The pyrometer has multiple temperature ranges, starting from 200°C up to 2500°C (see 'Specs' tab). It offers four different focusable optics:

I - 130 to 140 mm measurement distance, creating a target size of 1 to 1.3mm

II - 170 to 190 mm measurement distance, creating a target size of 1.3 to 1.9 mm

III - 230 to 290 mm measurement distance, creating a target size of 1.8 to 2.9 mm

IV - 360 to 710 mm measurement distance, creating a target size of  3.2 to 7.1 mm

The pyrometer's built-in LCD display and integrated key pad make it easier to adjust various settings. This can also be done via Process Sensors PC software. These new parameters can even be made in bus systems, through a switchable RS232 / RS484 interface. It can quickly take measurements through an adjustable response time (1ms up to 100 s), ensuring no change in temperature goes undetected.

Specs

PSC-A10F

Temperature Ranges
200 °C to 1800 °C
500 °C to 2500 °C
Spectral range
3.9 µm
Response Time
1 ms, adjustable up to 100 seconds set via RS-485 interface or directly at the device
Accuracy
0.6 % of measured value in °C or 1 K3
Outputs
0/4 to 20 mA, linear(switchable) via RS-485 interface or directly at the device, max. load 700Ω
Power Supply
24 V DC±25 %, residual ripple 500 mV
Optics
I, II, III, IV
