Process Sensors Corporation


For R&D, Industrial, and Medical applications

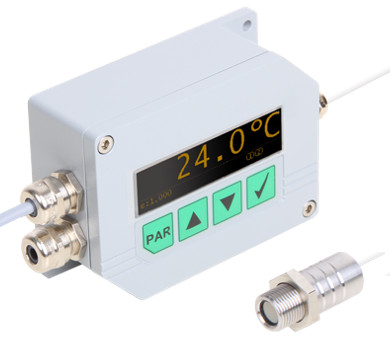

The PSC-4LT pyrometer is suitable for temperature measurement from 0 °C to 1000 °C on a variety of low reflection materials. Its' 12mm OD sensor head enables installation in incredibly tight spaces. The sensor head can be operated in high ambient temperatures up to 180°C / 356°F. Best used for conveyed material, dryers, and ovens.




Temperature Range
0 to 1000 °C
Spectral range
8 to 14 µm
Response time (t95)
100 ms, adjustable up to 100 seconds
FOV (field of view)
20 : 1
Sensor Head Size
12mm OD
Ambient Temperature - Sensing Head
0 to 180°C // 0 to 356°F
