PSC-G10N and PSC-S10N Series
Self-Contained Precision Temperature Measurement

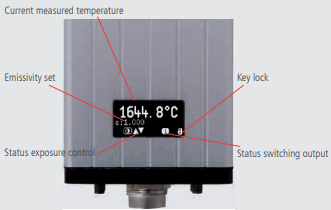

A pair of 1-color, non-contact temperature sensors designed for steel, metals, induction heating, semiconductor wafers, molten silicon and glass, kilns, furnace applications and R & D. The PSC-G10N covers temperature ranges from 200 to 2500°C, whereas the PSC-S10N covers ranges from 550 to 3000°C. Key features include adjustable focus laser, through lens, or video. Comes with On-board temperature display with 4-20 mA RS484 Modbus outputs. Various optics available.
Specs
PSC-G10N
Temperature Ranges
200 - 1200°C
200 - 2000°C
250 - 1500°C
350 - 2000°C
350 - 2500°C
Spectral Range
1.5 to 1.8 µm
Response Time
2 ms adjustable up to 100 s
Emissivity
0.050 to 1.000, adjustable at the device or via interface
Accuracy
0.5 % of measured value in °C + 1 K
Power Supply
24 V DC ± 25 %
Output
0/4 to 20 mA, switchable via software, temperature linear, max. burden 500 Ω (galvanically isolated)
Adjustable Optics (mm)
250, 300, 350, 500, 800, 4000
PSC-S10
Temperature Ranges
550 - 1500°C
600 - 1800°C
800 - 2500°C
900 - 3000°C
Spectral Range
0.8 to 1.1 µm
Response Time
2 ms adjustable up to 100 s
Emissivity
0.050 to 1.000, adjustable at the device or via interface
Accuracy
0.5 % of measured value in °C + 1 K
Power Supply
24 V DC ± 25 %
Output
0/4 to 20 mA, switchable via software, temperature linear, max. burden 500 Ω (galvanically isolated)
Adjustable Optics (mm)
250, 300, 350, 500, 800, 4000
