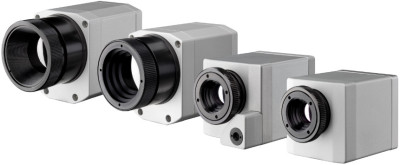

PSC Surveyor Series Thermal Imaging Cameras

Cutting Edge Thermal Imaging Camera Systems

The Process Sensors Surveyor camera series offers a comprehensive range of imaging and line scanning camera systems to continuously monitor and control industrial processes. Measures temperatures starting from -20 to 1800°C

Inquire

Overview

PSC Surveyor Series Thermal Imaging CamerasThe Process Sensors Corporation (PSC) Surveryor camera series offers a comprehensive range of imaging and line scanning camera systems to continuously monitor and control industrial processes. These state of the art camera systems provide real-time thermography with an astonishing 128 Hz frame rate.

The systems can be remotely triggered to respond to fast occurring events, initiating alarms, outputs or capturing and recording data to a network for later retrieval and analysis. In addition, the Surveyor camera series can be switched in the field to a line scanner mode, which allows the camera to perform as a line scan camera. These unique products are also applied to laboratory and R&D applications covering an overall temperature span from -20°C to 1800°C.Thermal Imaging Camera Software

The Surveyor cameras are compact, radiometric and enable the operator to view and measure thousands of temperature points, line profiles or user selectable areas or regions of interest (ROI’s) defined by a maximum, minimum or average temperature within these regions. The smart technology and space saving design of each model brings new meaning to the word “simplicity” and sets a benchmark for quality and performance.

The Surveyor cameras are available in a variety of models with a range of termperature ranges, resolutions, and lens options to optimize the performance criteria of the camera to your application.  There is even the PSC-450-LWK model designed for aerial surveillance on drones.  An optics calcuator for the various lens options is available here

Optics Calculator

Please see the specifications tab above for specifics on each available model.

Specs

PSC-640 Surveyor

Temperature Range
-20 to 900°C
Array Size
640 x 480
Frame Rate
32 Hz
Spectral Range
7.5 - 13 µm

PSC-450 Surveyor

Temperature Range
-20 to 1500°C
Array Size
382 x 288
Frame Rate
80 Hz
Spectral Range
7.5 - 13 µm

PSC-400 Surveyor

Temperature Range
-20 to 1500°C
Array Size
382 x 288
Frame Rate
80 Hz
Spectral Range
7.5 - 13 µm

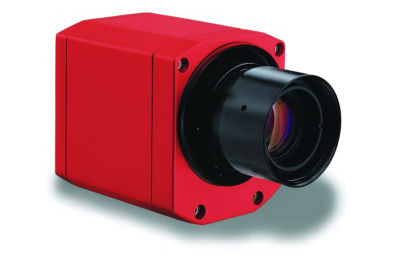

PSC-764-1M Surveyor

Temperature Range
450 to 1800°C
Array Size
764 X 480, 382 X 288
Frame Rate
32/80 Hz
Spectral Range
0.92 - 1.1 µm

PSC-450-G7

Temperature Range
200 to 1500°C
Array Size
382 x 288
Response Rate
80 Hz
Spectral Range
7.5 - 13 µm
